错误的接线可能导致传感器损坏。

The false wiring may result in the damage of the sensor.

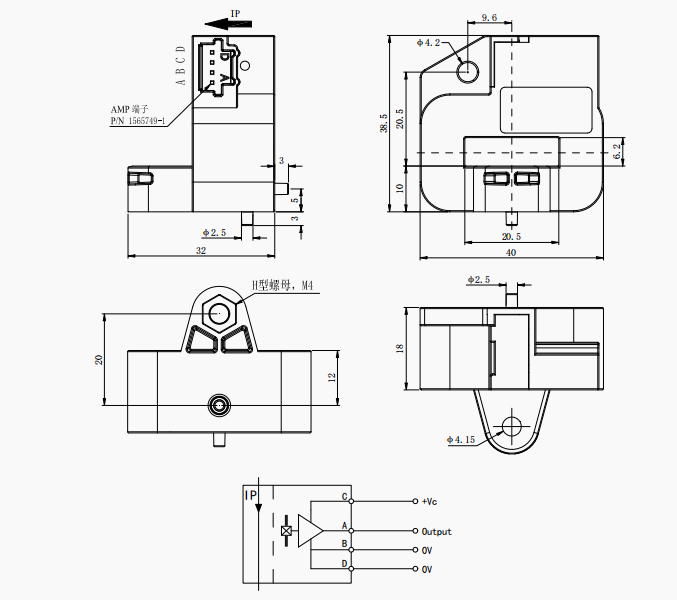

Ip 方向与产品箭头方向一致时，输出电压为正极。

VOUT is positive when IP flows in the direction of the arrow.

当初级导体完全充满初级孔径时动态表现（di/dt 和响应时间）为最佳效果。

Dynamic performances (di/dt and response time) are best with a single bar completely filling the primary hole.

初级导体的温度不应超过 100℃。

Temperature of the primary conductor should not exceed 100°C.

这是一个标准的产品，需要其他规格（测量电流、电源电压、输出电压、连接器、转换比率等）请联系我们。

This is a standard model. For different versions (IP,supply voltages, output voltages,connection of secondary,turns ratios...),please contact us.
